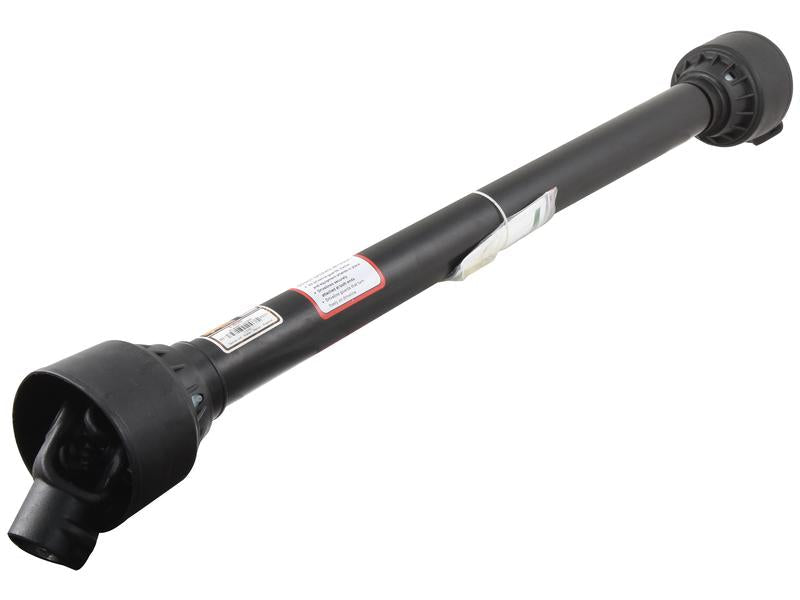

Sparex PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.164299

Sparex PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.164299

SKU:SP-S.164299

Regular price £153.19 GBP
Regular price £170.21 GBP Sale price £153.19 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 31 left

Quantity
Default Title

Sparex PTO Shaft - Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Introducing the Sparex PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed to meet the demands of various implements, this PTO shaft is an excellent alternative to part numbers 128696 and 128705.

Key Features:

  • Brand: Sparex
  • HP Rating @ 540RPM: 64 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB6/A6
  • Kilowatt Power Rating @ 540RPM: 47 kW
  • Lz Length: 710 mm
  • PTO Series: AB6/A6
  • Torque: 335 - 1240 Nm (830 Nm nominal)
  • Total Closed Length: 944 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Tube Reference: 12509/12512
  • Universal Joint Dimensions: 30.2 x 92 mm

Additional Information:

This PTO shaft is not associated with any specific OEM part number, making it a versatile choice for various applications. It is compatible with related products such as 163812, 166692, and 166693.

Tariff Code: 8483908990

Upgrade your machinery with the Sparex PTO Shaft and experience enhanced performance and durability.

Additional Product Information

Product Specifications

Alternative to: 128696, 128705
Brand: Sparex
HP Rating @ 540RPM: 64
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Lz Length (mm): 710
PTO Series: AB6/A6
Related products: 163812, 166692, 166693
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (mm): 944
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Sparex PTO Shaft - 710mm, 1 3/8" x 6 Spline Q.R.

- **Sparex PTO Shaft** with 710mm length and 1 3/8'' x 6 Spline Q.R. ends
- **High HP Rating:** 64 HP @ 540RPM, suitable for 55 to 119 HP applications
- **Durable Construction:** Triangle tube profile with 12509/12512 tube reference
- **Versatile Compatibility:** Alternative to 128696 and 128705, compatible with related products 163812, 166692, and 166693
- **Strong Torque:** 335 - 1240 Nm (830 Nm nominal) for reliable power transfer
