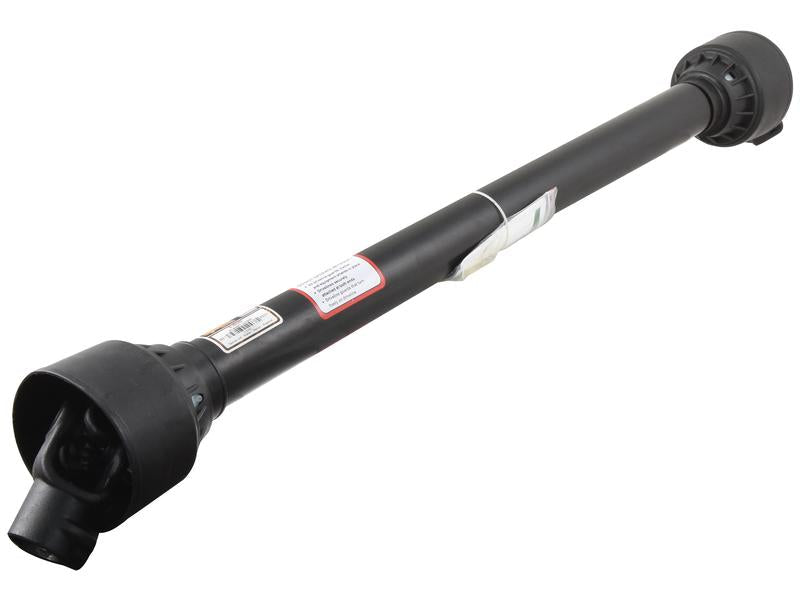

Sparex PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.164283

Sparex PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.164283

SKU:SP-S.164283

Regular price £105.08 GBP
Regular price £116.76 GBP Sale price £105.08 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

200 in stock

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 860mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 860mm and is equipped with 1 3/8'' x 6 Spline Q.R. connections on both the implement and tractor ends, ensuring a secure fit for your agricultural needs.

Key Specifications:

  • Brand: Sparex
  • HP Rating @ 540RPM: 35 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540RPM: 26 kW
  • Torque: 335 - 1240 Nm (460 Nm nominal)
  • Total Closed Length: 1075 mm
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Italian Series: AB4/A4
  • PTO Series: AB4/A4
  • Tube Reference: 12507/12508
  • Tariff Code: 8483908990

Related Products:

Explore our range of compatible products: 10608, 163810, 166692, 166693.

Whether you're looking to replace an existing PTO shaft or upgrade your equipment, the Sparex PTO Shaft is engineered to meet the demands of modern farming. Experience reliability and efficiency with every use.

Additional Product Information

Product Specifications

Brand: Sparex
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 860
PTO Series: AB4/A4
Related products: 10608, 163810, 166692, 166693
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1075
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

860mm PTO Shaft, 1 3/8" x 6 Spline Q.R. - S.164283

- **Durable Sparex PTO Shaft:** Engineered for long-lasting performance in demanding agricultural applications.
- **860mm Length:** Provides optimal reach for various implements and tractor configurations.
- **1 3/8'' x 6 Spline Q.R. Connections:** Ensures secure and reliable connections for both implement and tractor ends.
- **High HP Rating:** Handles up to 54 HP at 540 RPM, suitable for a wide range of agricultural equipment.
- **Versatile AB4/A4 Series:** Compatible with a variety of tractors and implements.
