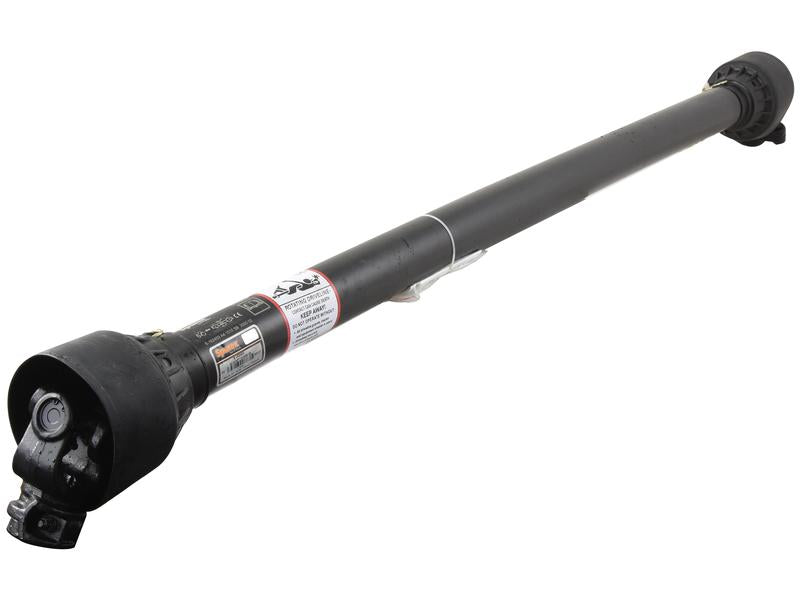

Sparex PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164285

Sparex PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164285

SKU:SP-S.164285

Regular price £132.95 GBP
Regular price £147.72 GBP Sale price £132.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

248 in stock

Quantity
Default Title

Sparex PTO Shaft - (Lz) Length: 880mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 880mm and connects from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

  • Brand: Sparex
  • Clutch Setting: 1400 Nm
  • HP Rating @ 540 RPM: 35 HP (up to 54 HP)
  • Kilowatt Power Rating @ 540 RPM: 26 kW
  • Torque Range: 335 - 1240 Nm (Max Torque: 460 Nm)
  • Total Closed Length: 1095 mm
  • Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Shearbolt Clutch Bolt Diameter: 8 mm
  • Shearbolt Clutch Radius: 48 mm
  • Italian Series: AB4/A4
  • PTO Series: AB4/A4
  • Tube Reference: 12507/12508
  • Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to part numbers 128688 and 128713. It is compatible with various implements and is designed to meet the needs of agricultural machinery.

Related Products:

  • 10608
  • 163810
  • 166692
  • 166693

Upgrade your equipment with the reliable and efficient Sparex PTO Shaft. Perfect for enhancing the performance of your agricultural machinery.

Additional Product Information

Product Specifications

Alternative to: 128688, 128713
Brand: Sparex
Clutch Setting Nm: 1400
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 880
PTO Series: AB4/A4
Related products: 10608, 163810, 166692, 166693
Shearbolt Clutch Bolt Ø mm: 8
Shearbolt Clutch Radius mm: 48
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (mm): 1095
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Sparex PTO Shaft - 880mm, 1 3/8" x 6 Spline Q.R. to Shear Bolt Limiter

- **Sparex PTO Shaft with 880mm Length:** Designed for optimal performance and durability.
- **High HP Rating:** Up to 54 HP @ 540 RPM, suitable for demanding applications.
- **Quick Release (Q.R.) Tractor End:** For easy and fast connection and disconnection.
- **Shear Bolt Limiter Implement End:** Provides overload protection for your equipment.
- **Compatible with Various Implements:** Alternative to part numbers 128688 and 128713.
